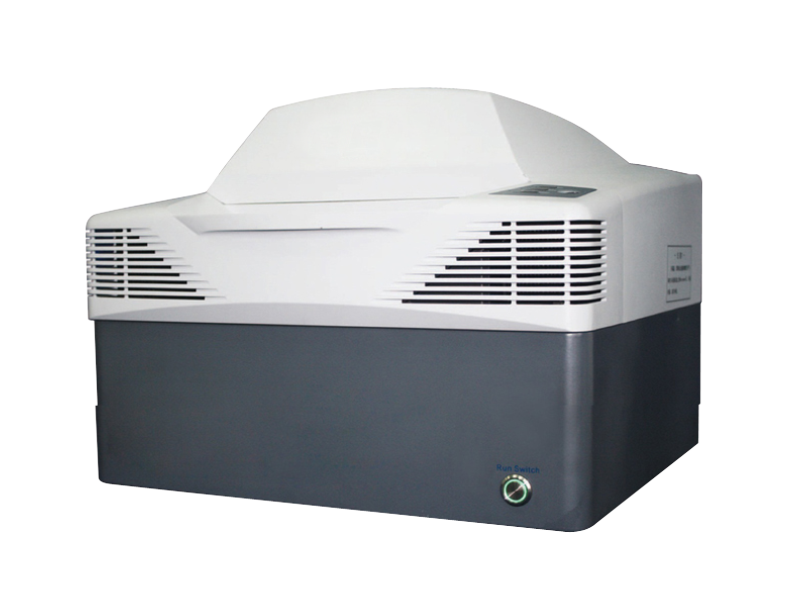

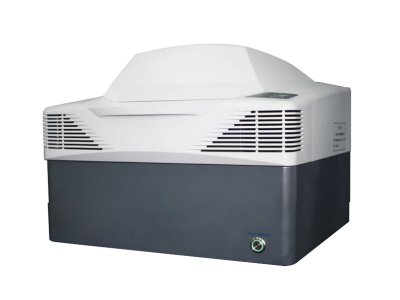

Fluorescent Quantitative Detection System
Fluorescent Quantitative Detection System is the latest product of Hybribio’s Real-time PCR detection system with larger sample capacity, more detection channels and wider temperature range.Unique Pat
Fluorescent Quantitative Detection System is the latest product of Hybribio’s Real-time PCR detection system with larger sample capacity, more detection channels and wider temperature range.
Unique Patented Block Dissipation Technology
The patented block dissipation technology and bottom detection mode provide FQA-96A better heating/ cooling rate, temperature accuracy, uniformity and stability. It has 96 samples capacity and implements 96 wells dual-color scanning only within 5.5 seconds.
Features
– New Baseline/Threshold and Linreg analytic methods, Separate and accurate analysis of each sample
– Comprehensive reporting capabilities, Panoramic view of all experimental results
– Using excellent Ferrotec Peltier cooler inside
– 6 individual filters
– Up to 96 samples, fit for most full skirted plate, 12 x 8-strips and 96 x 0.2ml tubes
– Bottom detection mode avoids interference between wells and ensures result more reliable
Specifications
| Name | Fluorescent Quantitative Detection System |
| Model | FQA-96A |
| Sample Capacity | 96-Well Microplate (Full Skirted), 12x 8-strip, 96×0.2ml (Bottom transparent) |
| Excitation Wavelength | 300-800nm |
| Emission Wavelength | 500-800nm |
| Detected Fluorescence | F1: FAM, SYBR Green I F2: VIC, HEX, TET, JOE F3: CY3, NED, TAMRA F4: ROX, TEXAS-RED F5: CY5 F6: LightCycler Red |
| Block Temp. Range | 4-105℃(Minimum Increment: 0.1℃) SOAK Low Temp. Conservation Function |
| Heating/Cooling Rate | 4.0 ℃/s |
| Sample Volume Range | 5~100μL |
| Hot-lid Temp. Range | 30-110℃ (Adjustable, Default 105℃, Automatic Hot-lid) |
| Operation System | Windows2000/XP/Vista/Windows7; Excel2003/2007, Access2003/2007 |
